Diesel Hydraulic Power Unity

Specifications Add to list

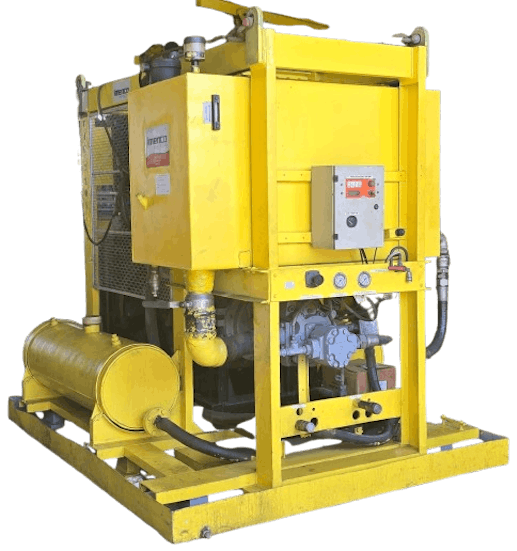

Diesel Hydraulic Power Unity (HPU)

Compact, reliable, and high-performing, the Diesel HPU ensures a continuous hydraulic power supply for offshore operations. Built to withstand harsh environments and hazardous areas, it delivers maximum efficiency, precise control, durability, and safety in the most demanding applications.

Introduction

  • Oil Storage:
    855L
  • Flow Rate:
    486L/min
  • Pressure:
    350 bar
  • Connections:
    Main Pressure:                        1 1/4″ Snap-tite 71 FemaleReturn:                                      1 1/4″ Snap-tite 71 MaleDrain:                                        3/4″ Snap-tite 71 FemaleLoad Sensing:                          1/4″ Snap-tite 71 Male
  • Dimensions:
    2700x2030x2520
  • Weight:
    3710 Kg
  • Application Area:
    Zone 1 and Zone 2
Diesel HPU
