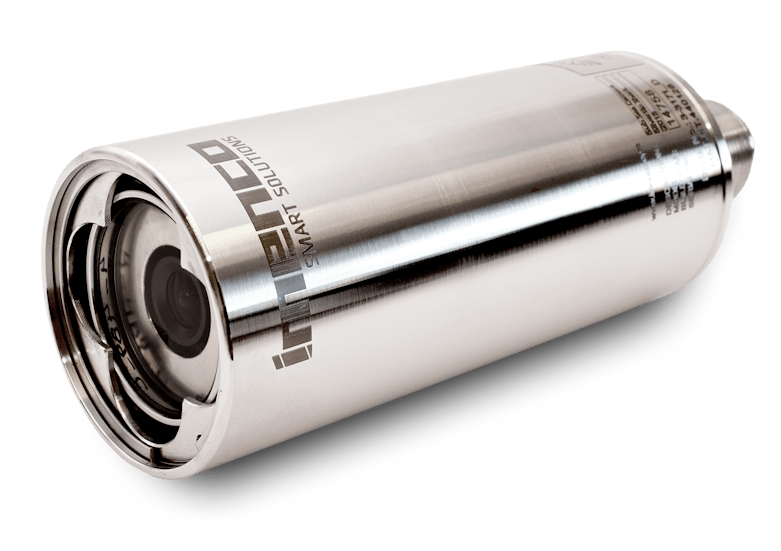

Silvertip Shark SD - Compact Camera with Lights
Key features
The Silvertip Shark - Compact Camera with Lights is a small subsea tooling & inspection camera with integrated LED lights.
Silvertip Shark SD Compact Camera with Lights
A Compact SD Camera with Lights
Introduction
The Silvertip Shark – Compact Camera with Lights is a small subsea tooling & inspection camera with integrated LED lights with zero halo effect, and a wide field of view.
The Silvertip Shark – Compact Camera with Lights is the preferred choice for camera boom applications, subsea chain caliper tools, and close-up inspections.
Product sheet - Silvertip Shark SDSpecifications
| Video output | CVBS (SD) | |
| Resolution | 800 TVL | |
| Sensitivity | 0.2 Lux | |
| View angle in water | 73°dia / 61° hor. (fixed focal length) | |
| Lens system | Sapphire | |
| LED light output | Max 500 Lumen | |
| Light control | Bi-polar or Tristate | |
| Housing | Duplex Stainless Steel | |
| Depth rating | 6.000 MSW | |
| Standard connector | 5507-1508 | |
| Power requirements | 24VDC (12 – 36) 8w | |
| Main dimensions (ex conn.) | Ø 50 x 117 (102 short version) | |
| Mass in air /water | 0,5 kg / 0,4 kg |
